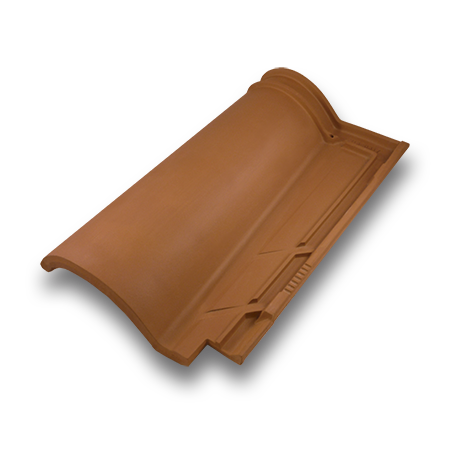

Mixed Ceramic Roof Tile 11

Mixed Ceramic Roof Tile 11

Mixed Ceramic Roof Tile 11

Specifications:
Size: 461*mm x 275mm (LxW)
Weight: 3.8 kg

Item Name

Mixed Ceramic Roof Tile 11

* Tolerance +/- 2% according to the norm UNE EN 1304
** Nominal value. It must be verified in the building site according to its characteristics.

Colour range

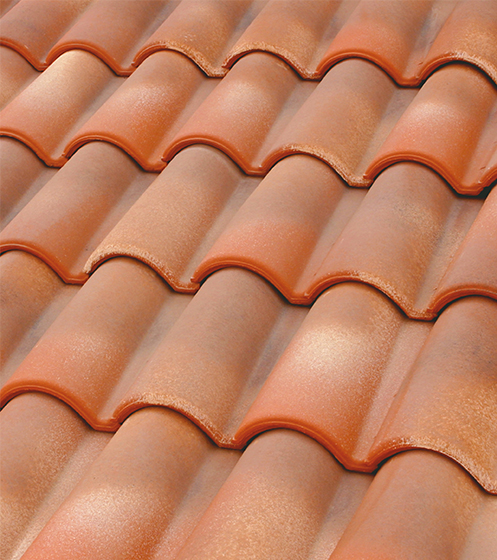

Adour

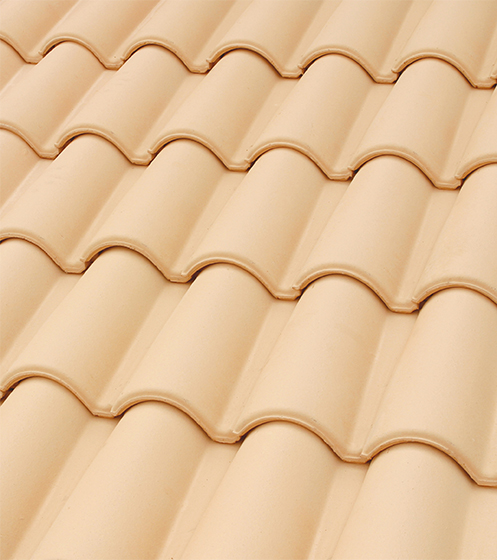

Crema

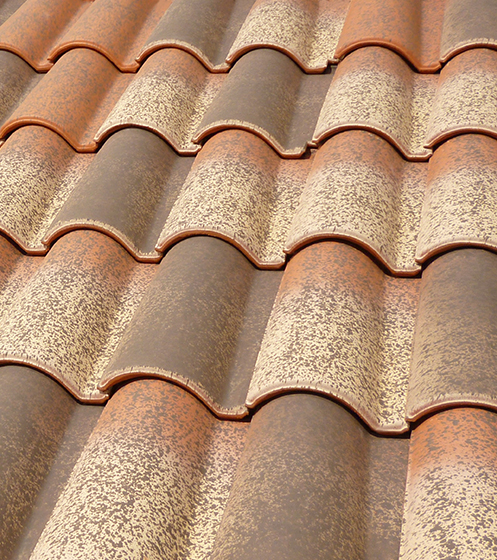

Elegance

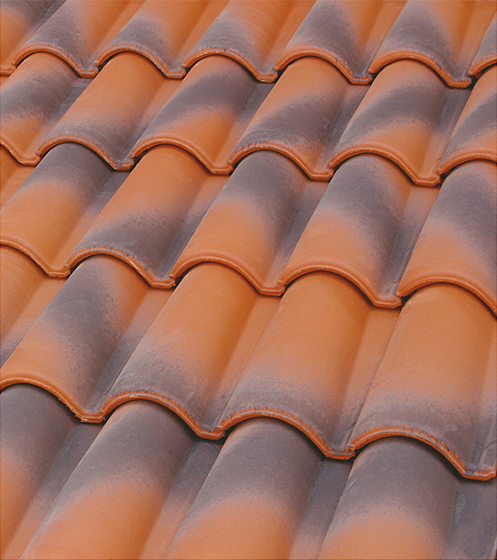

Extremenna

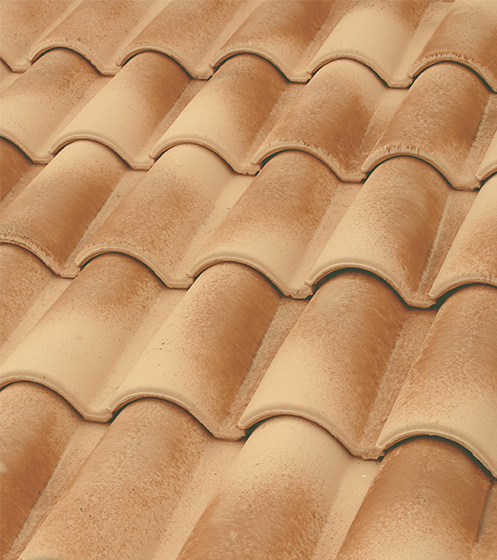

Garonne

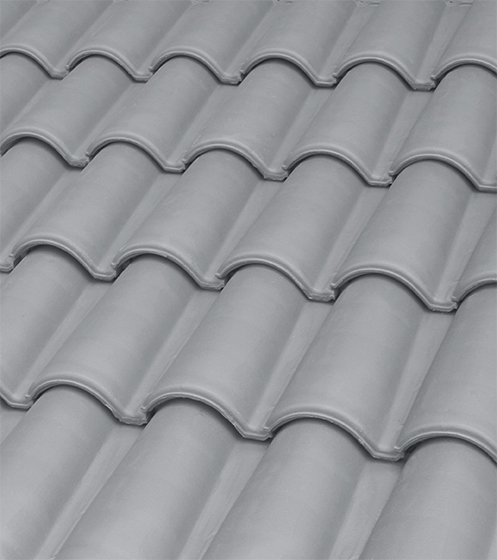

Gris cemento – Gray Grise

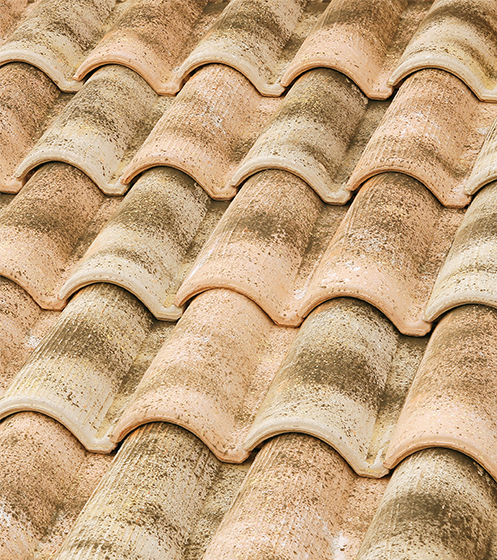

Harmonie

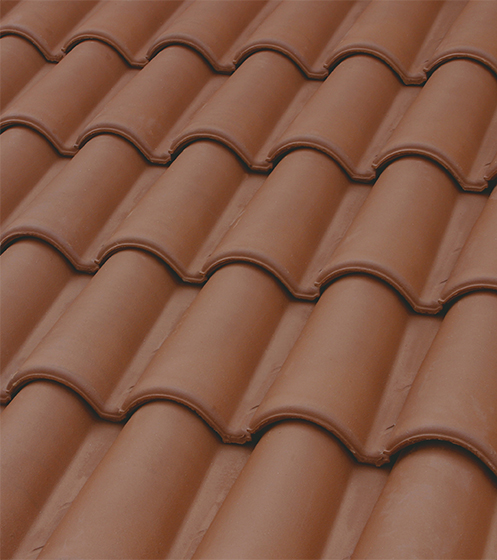

Marron – Brown – Marron

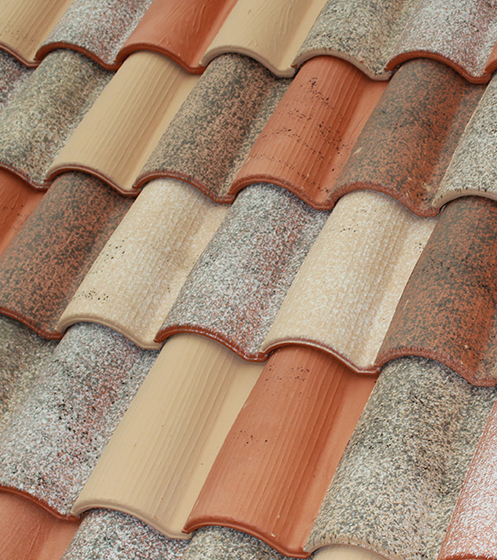

Millenaria

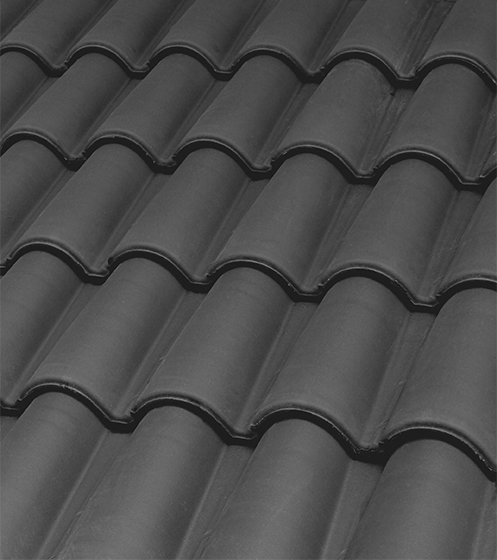

Negra – Black – Noire

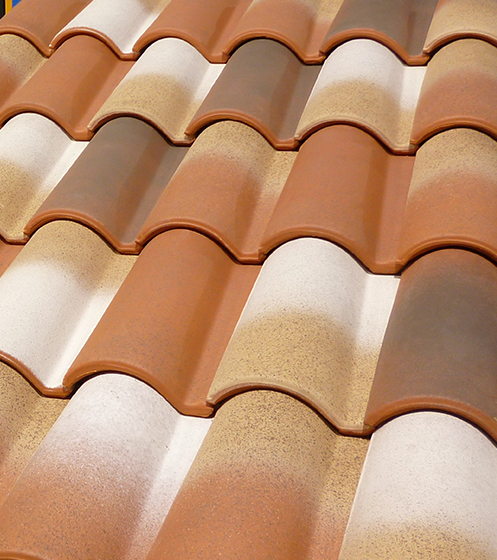

Nuance

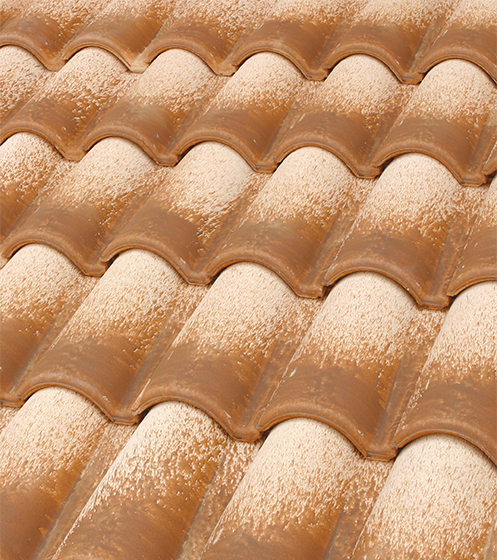

Numancia

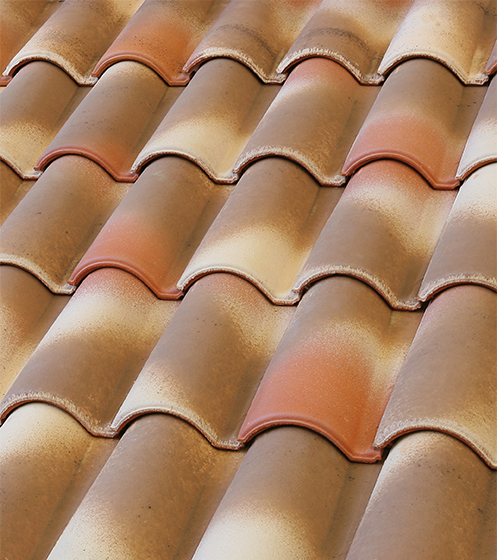

Oceanique

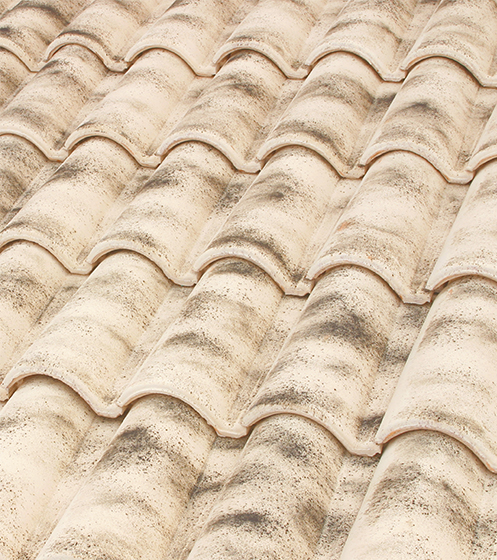

Paja Envejecida – Aged Straw – Paille Vieilli

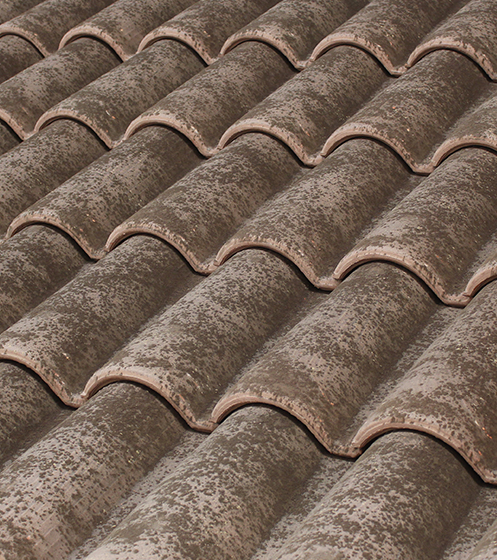

Rianno

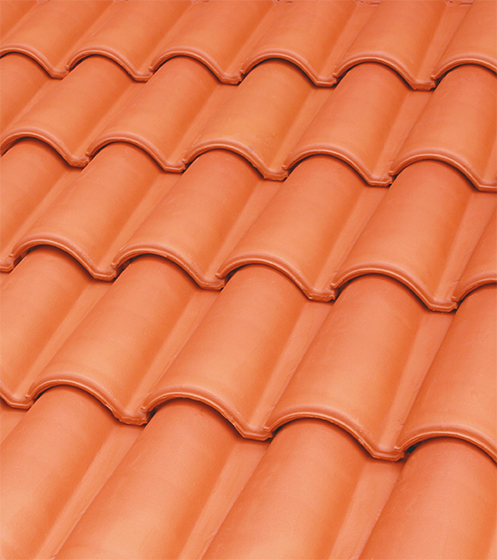

Roja – Red – Rouge

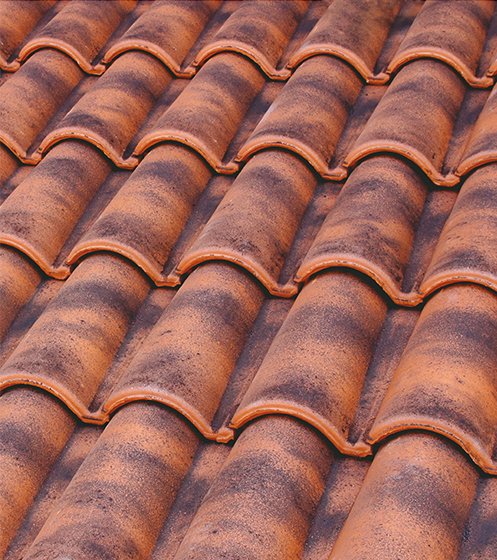

Roja Envejecida – Aged Red – Rouge Vieilli

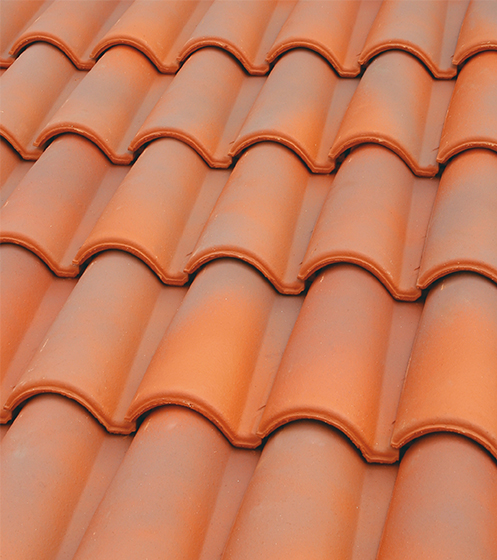

Rojo Antiguo – Antic Red – Rouge Antique

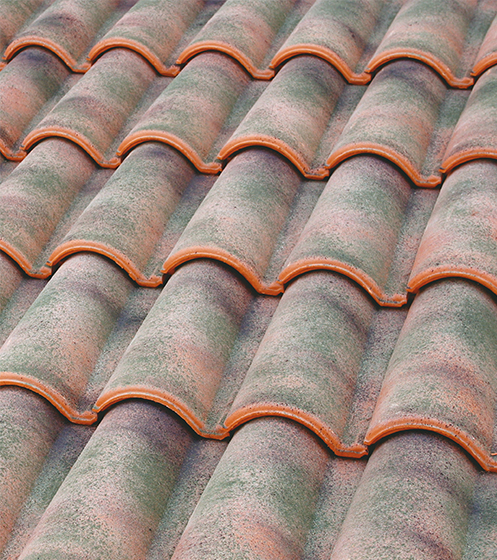

Rustica – Rustic – Rustique

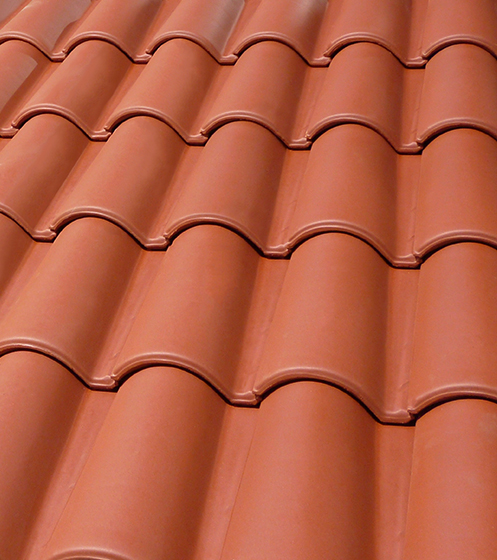

Salonica

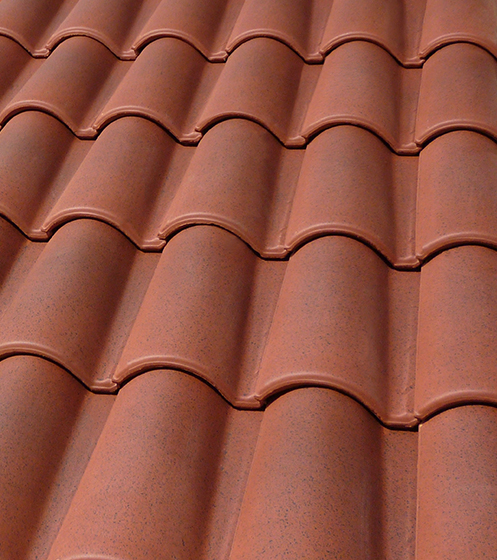

Volcano

Quality standards

Structure:UNE EN 1304
Dimensions:UNE EN 1024
Impermeability:UNE EN 539-1
Flexural strength:UNE EN 538 ≥ 1200 N
Frosting:UNE EN 539-2 / Mét. E ≥ 150 Ciclos
Reaction to fire:UNE EN 13501-1 A1
Behavior to fire:UNE EN 13501-5 Broof

Item Features

Dimensions (cm) 46.1 × 27.5 cm *
Weight (Kg) 3.8 Kg
Units/m2 11 pcs / m² **
Usable length: (mm) 385 mm
Usable width: (mm) 216 mm
Longitudinal overlap: (mm) 76 mm
Transverse overlap: (mm) 64 mm
Distance between battens: (mm) 385 mm
Longitudinal clearance: (mm) 12 mm
Transverse clearance: (mm) 12 mm
Pallet contents: (mm) 240 uds
